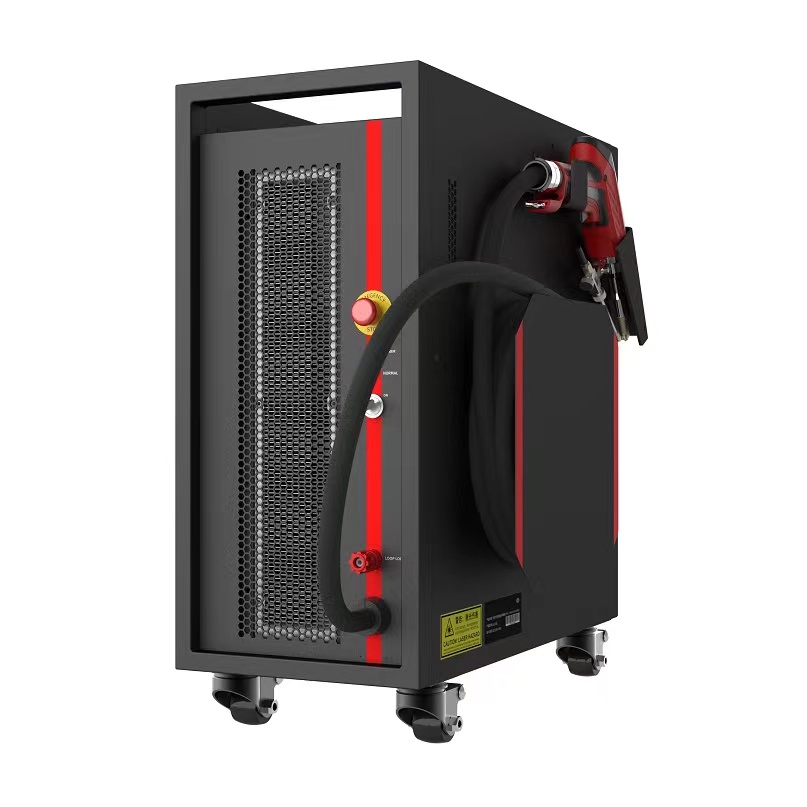

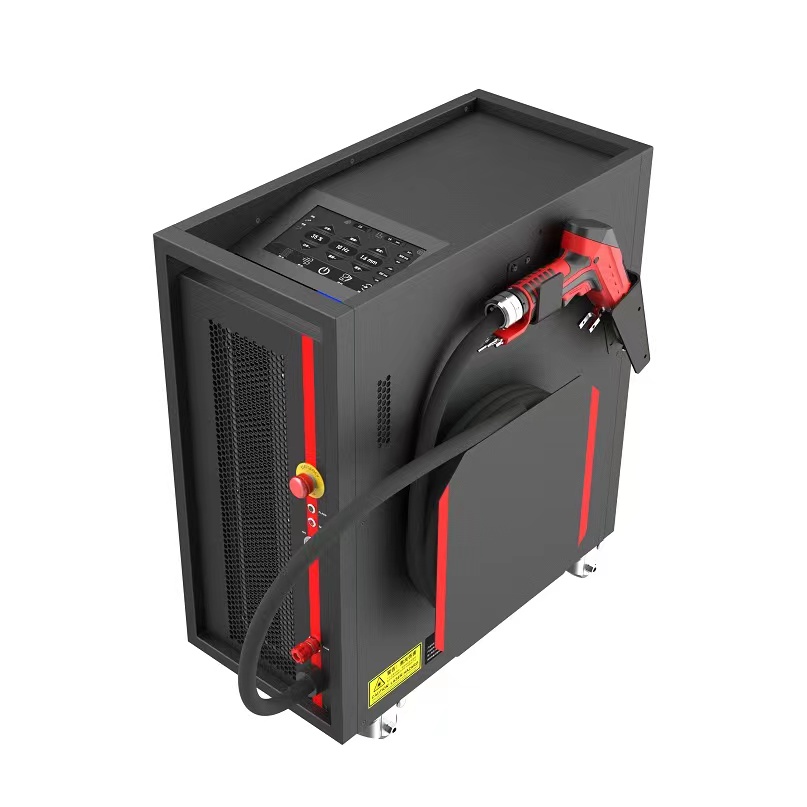

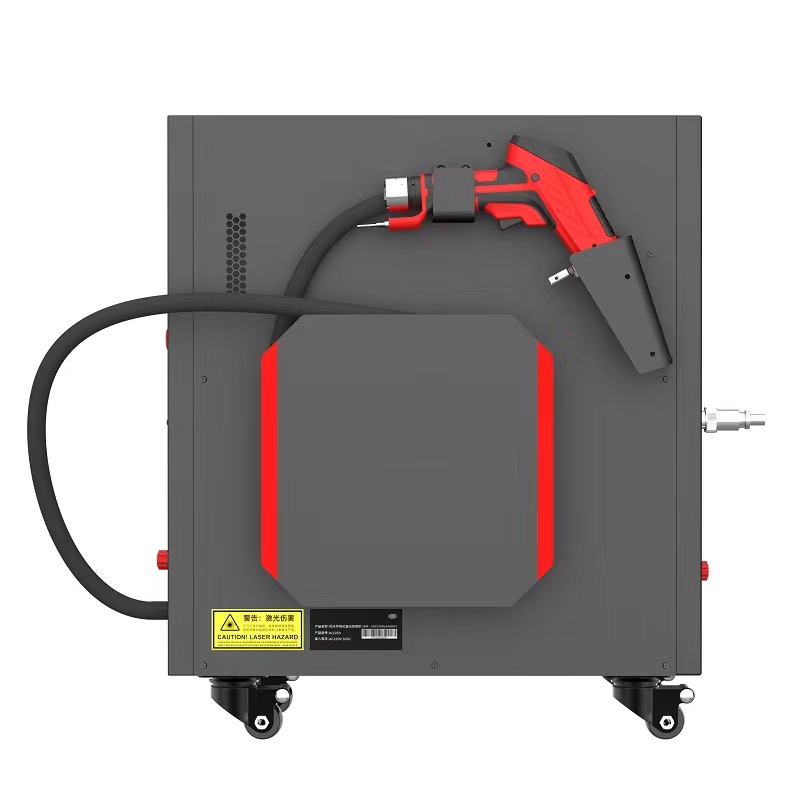

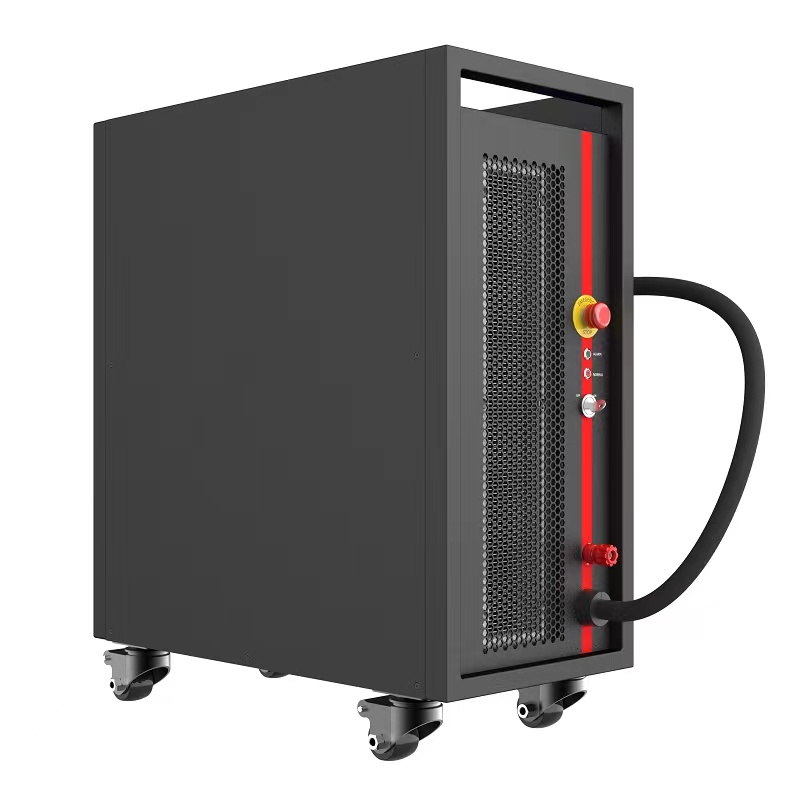

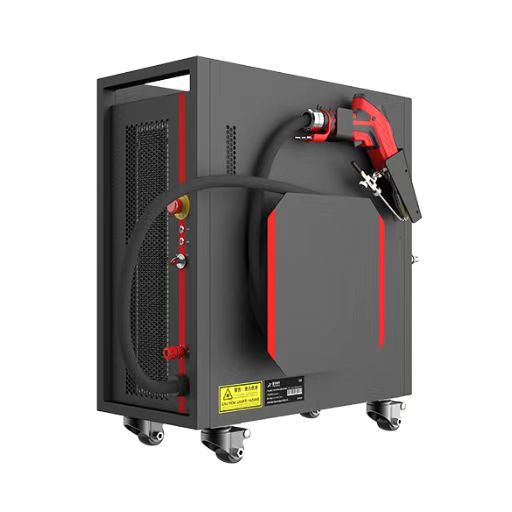

Model X5 Air Cooling Laser Welding Machine Portable 3in1 Lazer Welder

This Air-cooling Portable Handheld Laser Welding Machine is a revolutionary tool in the field of metalworking, combining power, versatility and safety in a compact, user-friendly package. Whether for industrial or personal use, it stands as a testament to modern welding technology's capabilities. The air cooling laser welding machine with 3 functions: welding, cutting and weld bead cleaning.

Key features:

• Working mode: continuous and pulsed

• Can be equipped with a robotic arm

• Wobble welding

• Big pump engine, surging power, globally leading semiconductor laser pump source in the industrial field

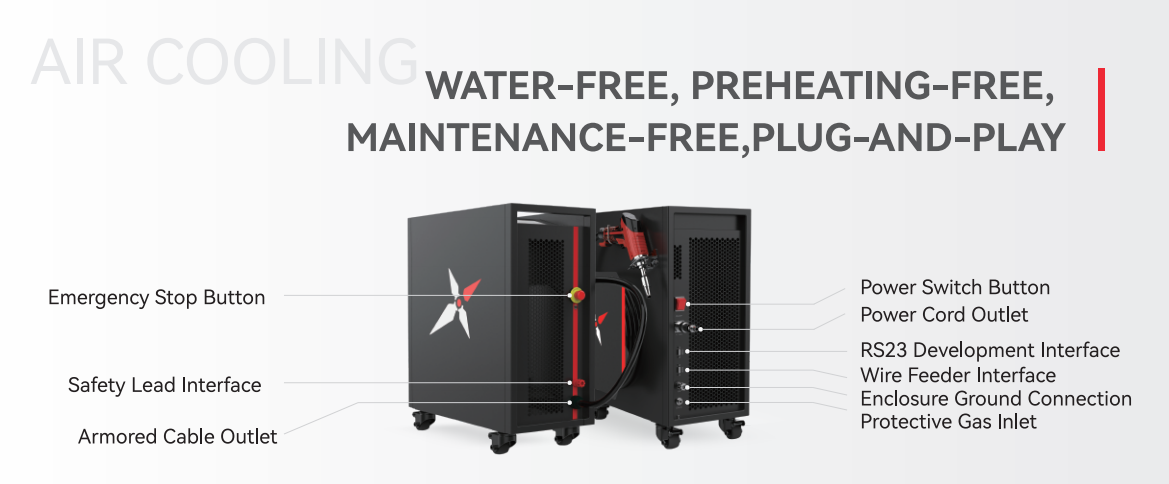

• Strong air cooling, real-time welding without preheating

• Maintain sufficient power margin at rated power output state

• Industry leading optical technology and control solutions achieve high efficiency, low energy consumption, and deep welding seams

• Global top high-performance chips ensure stable and reliable laser quality

• High quality pump source + High performance laser chips → Efficient heat sink to solve heat dissipation problems

Diverse Welding Materials Compatibility:

Stainless Steel: Single-sided penetration up to 5mm, double-sided up to 10mm.

Galvanized Sheet: Single-sided penetration up to 5mm, double-sided up to 10mm.

Carbon Steel: Single-sided penetration up to 5mm, double-sided up to 10mm.

Aluminum: Single-sided penetration up to 4mm, double-sided up to 8mm.

Brass: Single-sided penetration up to 3mm, double-sided up to 6mm.

Red Copper: Single-sided penetration up to 2mm, double-sided up to 4mm.

Small laser welder, specialized for general workers without welding experience, with fast welding speed, firm welding seams, weight and volume better than water cooled handheld laser welding machine, improving the mobility of the entire machine.

Model	X3	X4	X4H	X5
Center wavelength	1080±10nm
FWHM spectral bandwidth	＜10nm
Divergence angle	0.06NA
Light spot energy distribution	Gaussian
Work mode	CW & Pulse
Maximum modulation frequency	5kHz	10kHz	10kHz	10kHz
Output power instability	＜3%（24 hours）	＜3%（24 hours）	＜3%（24 hours）	＜5%（24 hours）
Power adjustment range	10%-100%
Indicate laser parameters	650nm≥1mW
Output fiber core diameter	14μm	14μm	20μm	20μm
Armor cable fiber length	5m	5m	5m	5m/10m (Special custom)
Output connector	XphotonicsQBH
Fiber bending radius	200mm	200mm	200mm	300mm
Input voltage	Single phase 220V±10%; 50/60HZ
Power consumption	≤10A 2200W	≤14A 3000W	≤19A 4500W	≤19A 4500W
Mechanical Dimensions	420*255*550mm	420*255*550mm	525*255*620mm	525*255*620mm
N.W.	25KG	25KG	41KG	42KG

Advantages of portable air cooling laser welding machine:



Ultra-Long Life Pump: This portable laser welding machine is equipped with an ultra-long life pump, ensuring durability and consistent performance for various applications.



Versatile Applications: Ideal for metal processing stations, construction and plumbing, body in white applications, aviation and transportation, as well as maintenance and repair.



High Pump Power and Input Power: Boasts a pump power of 2200W and an input power of 220V single phase, 24A, delivering robust performance for heavy-duty tasks.



Adjustable Swing Width and Frequency: Features a swing width of 5mm and a frequency of 120HZ, allowing for precise control during welding operations.



Compact and Lightweight: Measures 530x260x620mm and weighs 41kg, making it a convenient and portable solution for on-site welding tasks.
