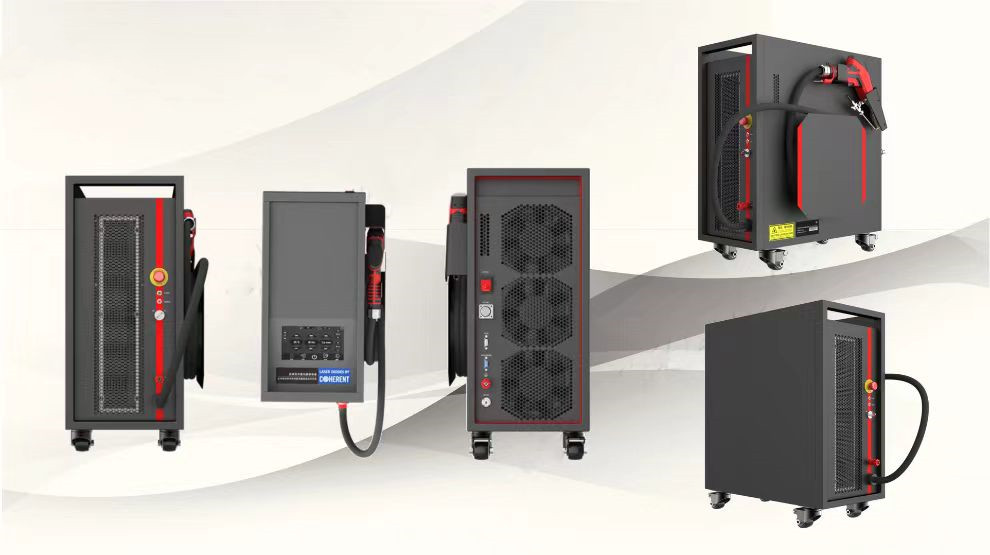

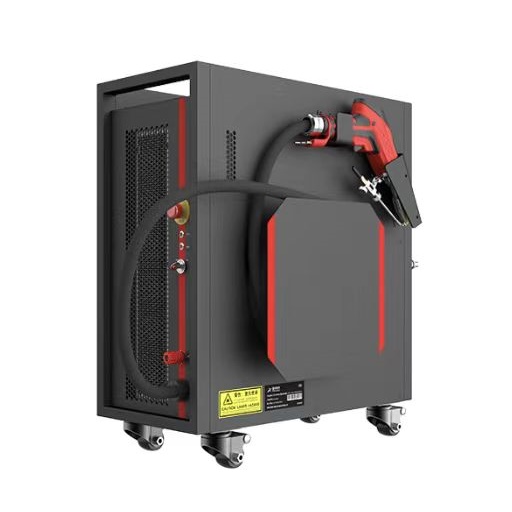

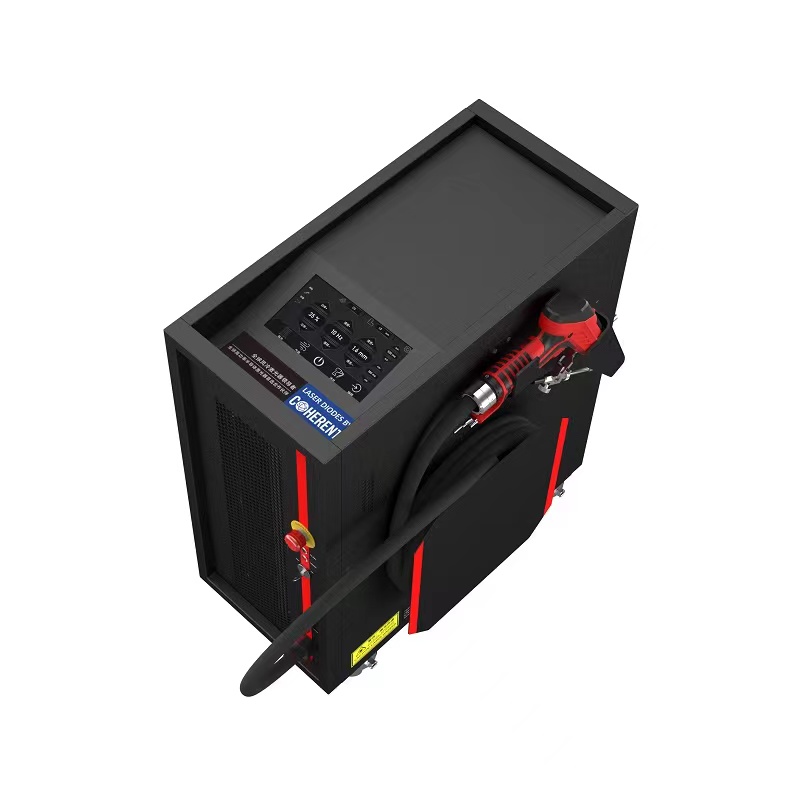

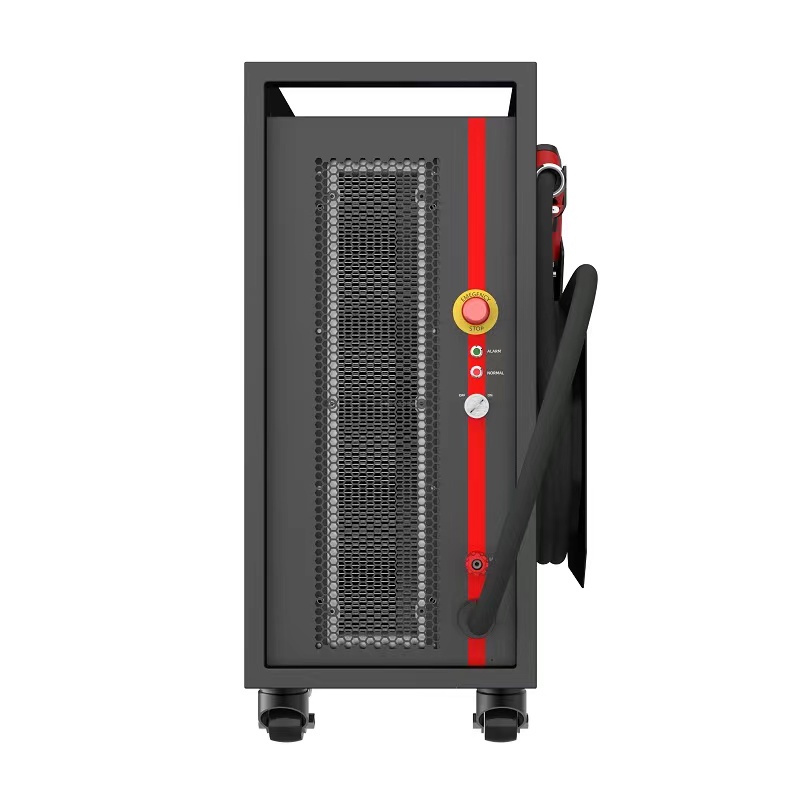

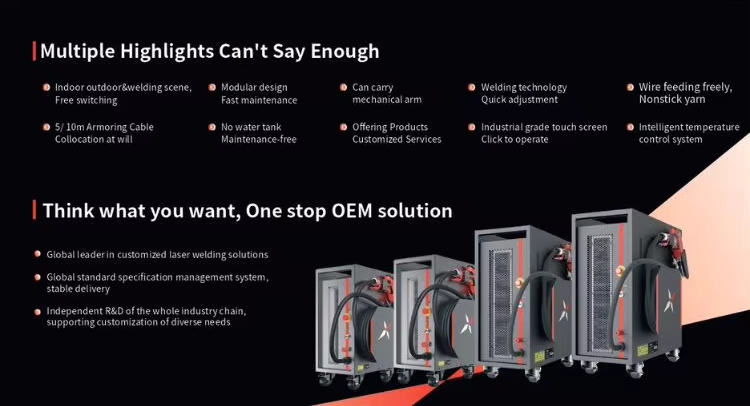

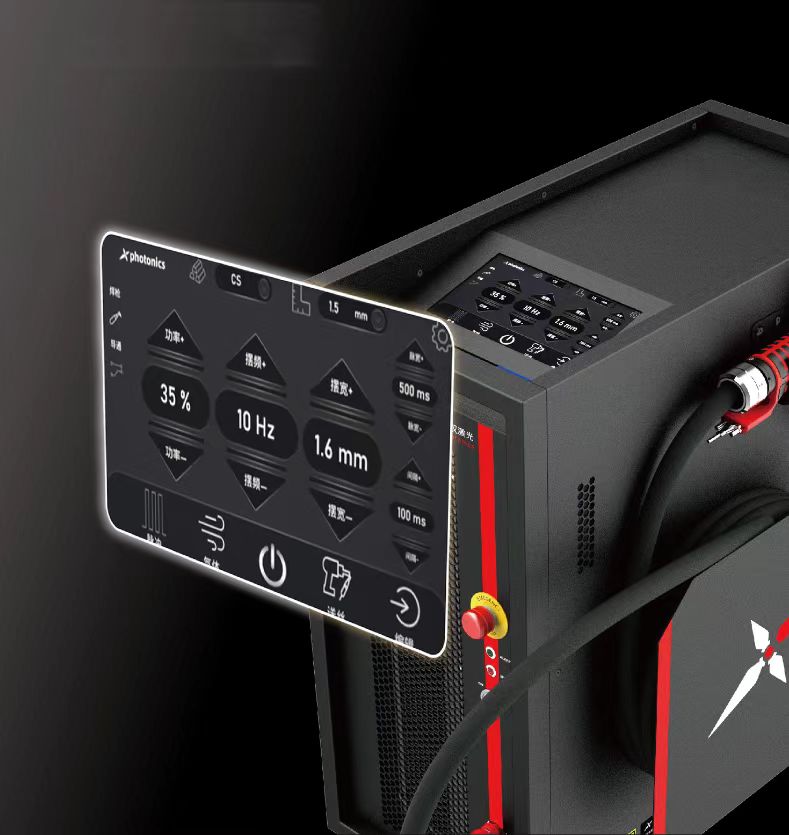

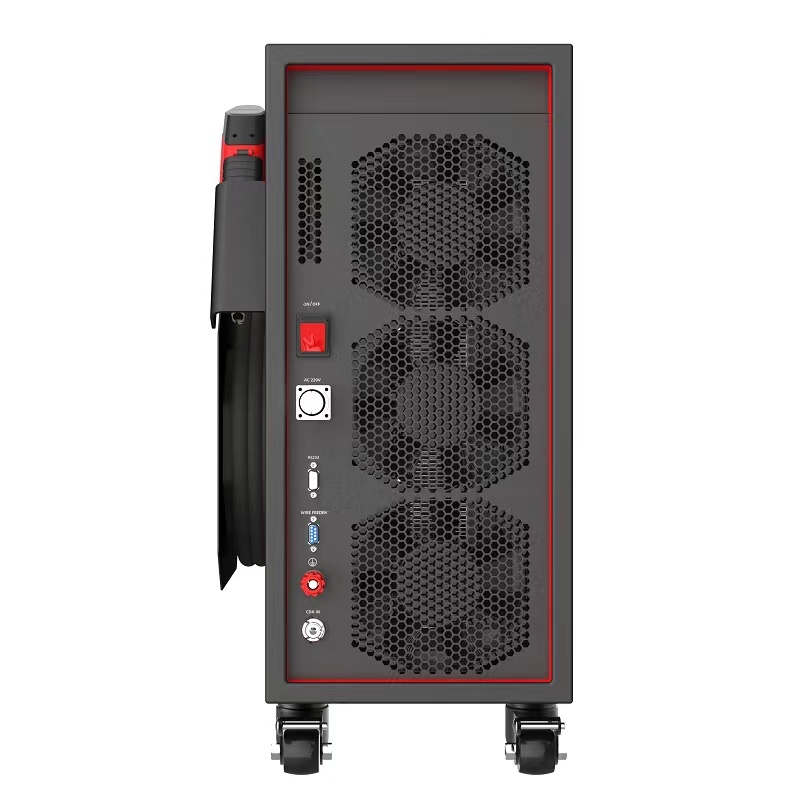

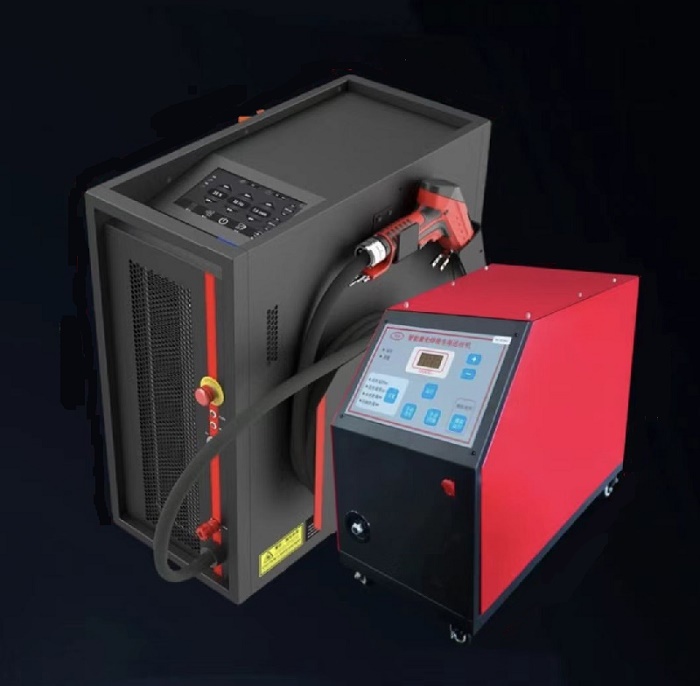

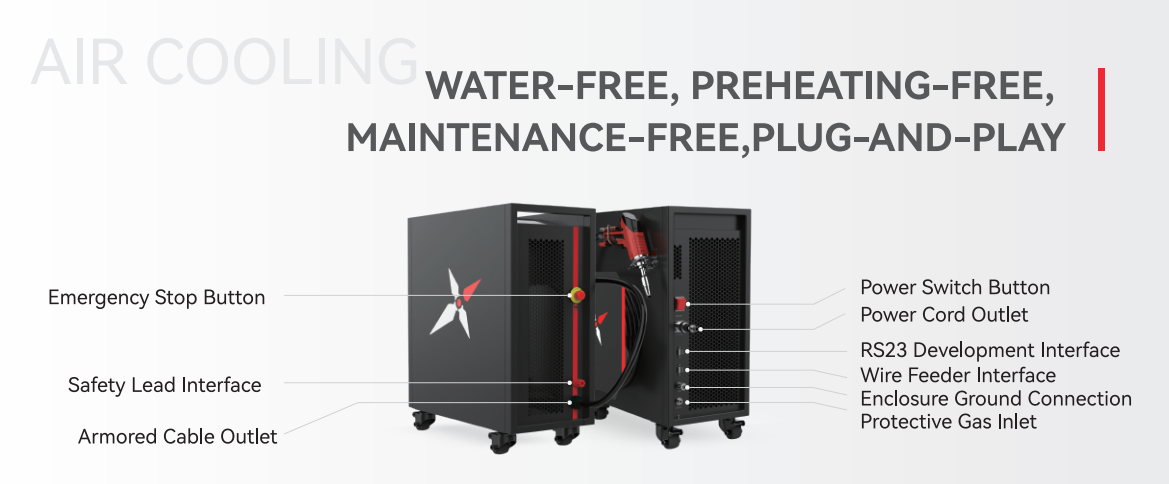

Model X4H Handheld Portable Air Cooling Fiber Laser Welding and Cutting 3-in-1 Machine

The X series handheld air cooling fiber laser welding machine is a very classic equipment with high electro-optical conversion efficiency and superior beam quality. Meanwhile, due to the coiled nature of the fiber, the structure of the fiber laser is more compact. This series of products integrates advantages such as high electro-optical conversion efficiency, high output power, superior beam quality, compact structure, maintenance free, and low cost. It can be widely used in industrial processing, scientific research, and other scenarios such as metal welding and cutting.

The Mini air cooling lazer welding machine is 3 in 1 functions: welding, cutting and weld bead cleaning.

Features:

• Working mode: continuous laser and pulsed laser

• Can be equipped with a robotic arm

• Wobble welding

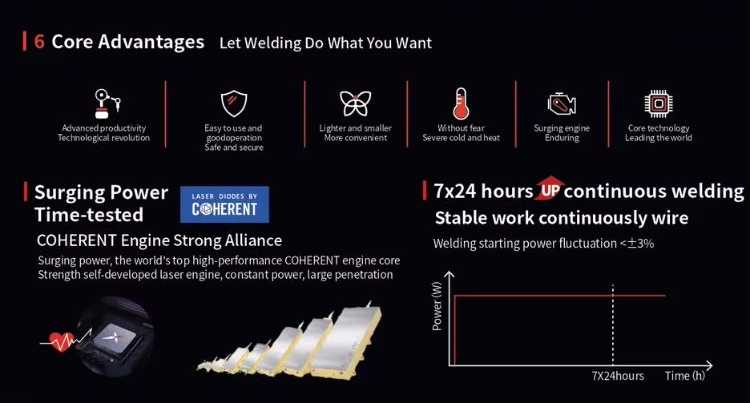

• Big pump engine, surging power, globally leading semiconductor laser pump source in the industrial field

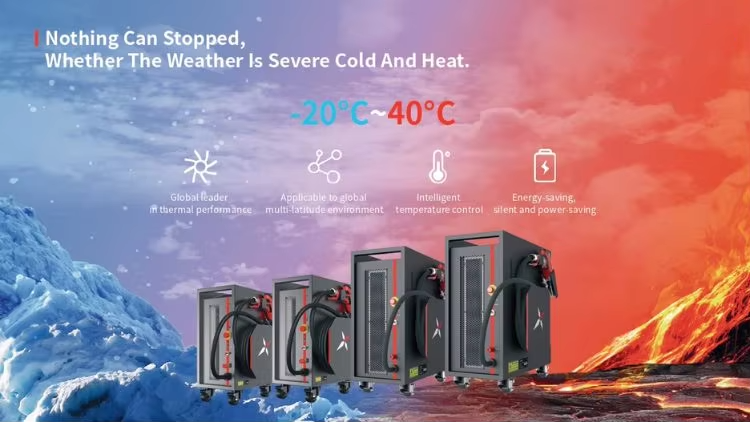

• Strong air cooling, real-time welding without preheating

• Maintain sufficient power margin at rated power output state

• Industry leading optical technology and control solutions achieve high efficiency, low energy consumption, and deep welding seams

• Global top high-performance chips ensure stable and reliable laser quality

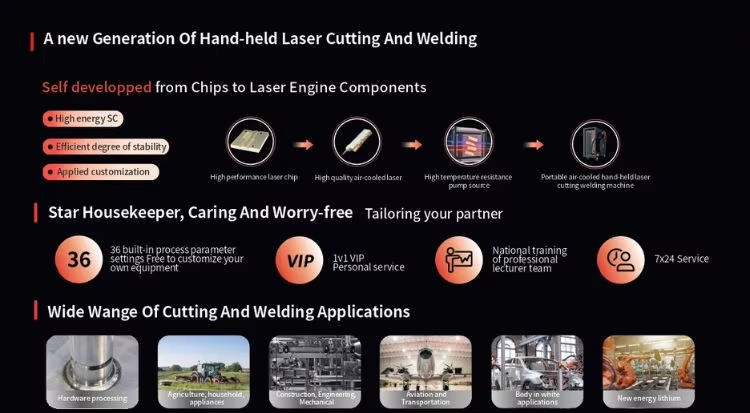

• High quality pump source + High performance laser chips → Efficient heat sink to solve heat dissipation problems

Model	X3	X4	X4H	X5
Center wavelength	1080±10nm
FWHM spectral bandwidth	＜10nm
Divergence angle	0.06NA
Light spot energy distribution	Gaussian
Work mode	CW & Pulse
Maximum modulation frequency	5kHz	10kHz	10kHz	10kHz
Output power instability	＜3%（24 hours）	＜3%（24 hours）	＜3%（24 hours）	＜5%（24 hours）
Power adjustment range	10%-100%
Indicate laser parameters	650nm≥1mW
Output fiber core diameter	14μm	14μm	20μm	20μm
Armor cable fiber length	5m	5m	5m	5m/10m (Special custom)
Output connector	XphotonicsQBH
Fiber bending radius	200mm	200mm	200mm	300mm
Input voltage	Single phase 220V±10%; 50/60HZ
Power consumption	≤10A 2200W	≤14A 3000W	≤19A 4500W	≤19A 4500W
Mechanical Dimensions	420*255*550mm	420*255*550mm	525*255*620mm	525*255*620mm
N.W.	25KG	25KG	41KG	42KG

Advantages of portable air-cooled laser welding machine:



1. High photoelectric conversion efficiency

2. High output power and superior beam quality

3. High power stability, high reliability, and long service life

4. All fiber structure, compact, maintenance free, and low cost

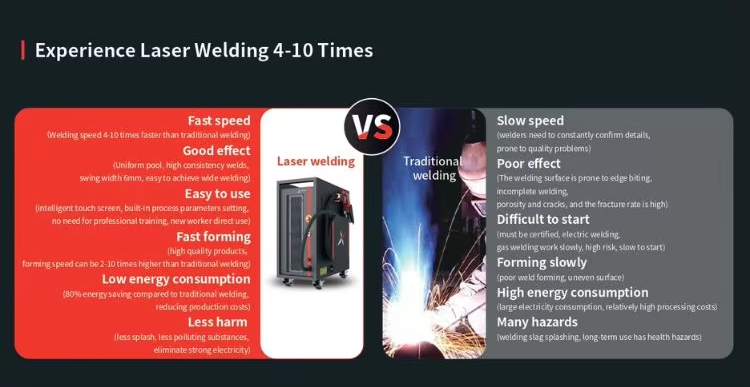

5. Compared to traditional argon arc welding technology, laser welding has a greater heat fusion effect on thin plates, is prone to deformation, and is more troublesome in post-processing. Laser welding has a smaller thermal impact on thin plates, is less prone to deformation, and the weld bead is uniform and smooth, requiring almost no post-processing.

6. You can quickly learn how to operate, saving you expensive technical labor costs.

7. Processing is environmentally friendly, and red light positioning is used for handheld fiber optic head welding. The handheld processing head is lightweight, with high worker efficiency and less fatigue during long-term welding.



Weldable materials: stainless steel, carbon steel, brass, aluminum alloy, galvanized sheet, aluminum zinc plate, alloy steel, silicon steel plate, pickling plate, titanium alloy, manganese steel, etc.
