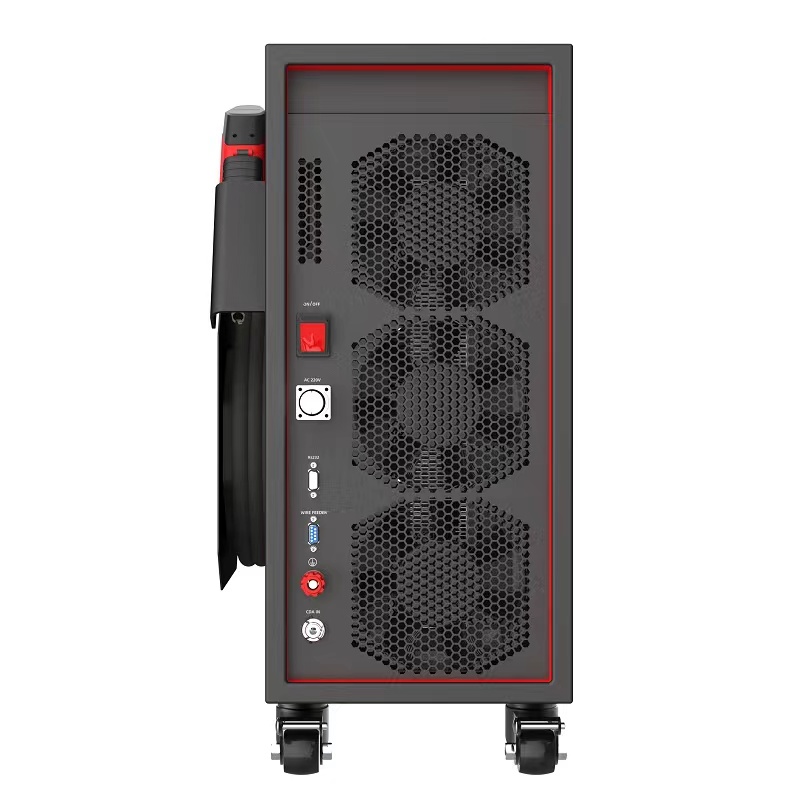

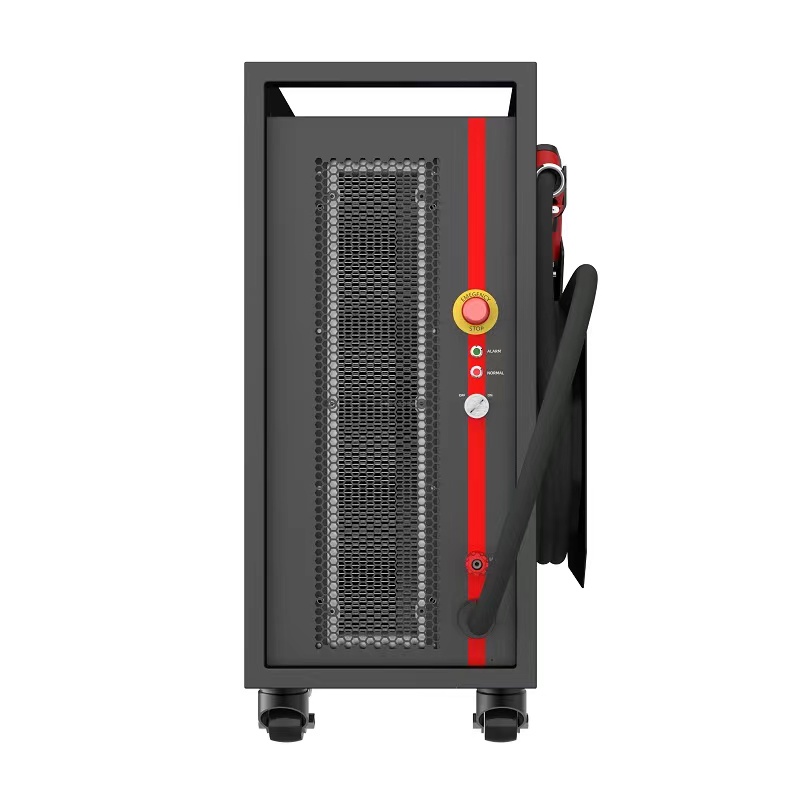

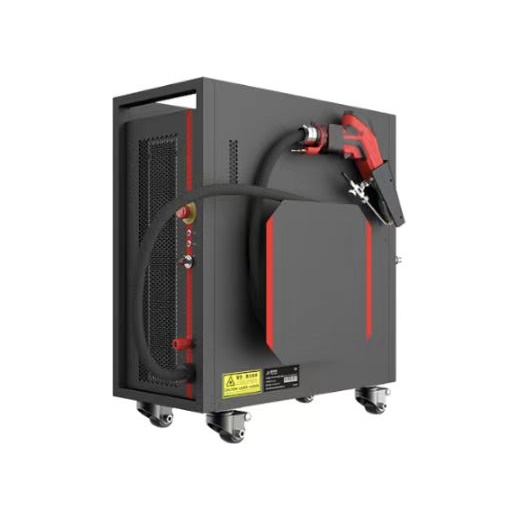

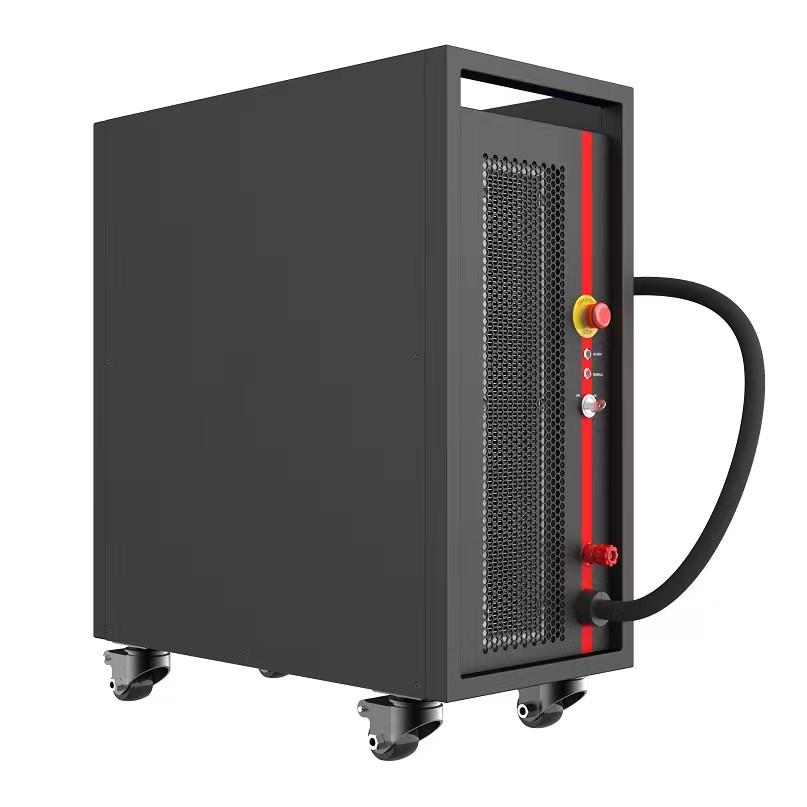

Model X4 Air Cooled Portable Small Laser Welding Machine 3 In 1

X series handheld air cooled laser welding machine is a very classic equipment with high electro-optical conversion efficiency and superior beam quality. Meanwhile, due to the coiled nature of the fiber, the structure of the fiber laser is more compact. This series of products integrates advantages such as high electro-optical conversion efficiency, high output power, superior beam quality, compact structure, maintenance free, and low cost. It can be widely used in industrial processing, scientific research, and other scenarios such as metal welding and cutting.

Features:

3 in 1 functions: welding, cutting and weld bead cleaning

Working mode: continuous laser and pulsed laser

Can be equipped with a robotic arm

Wobble welding

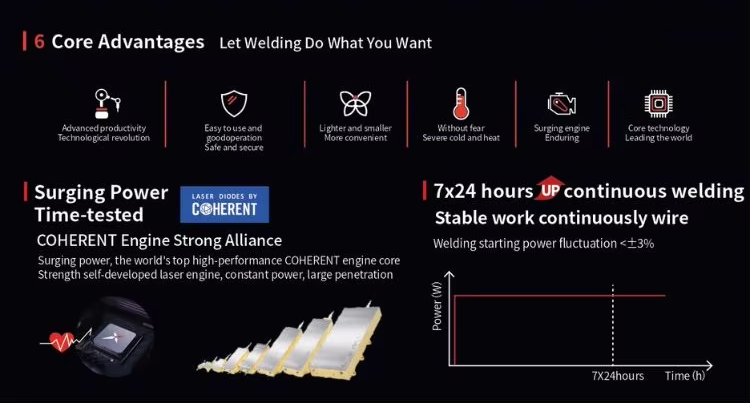

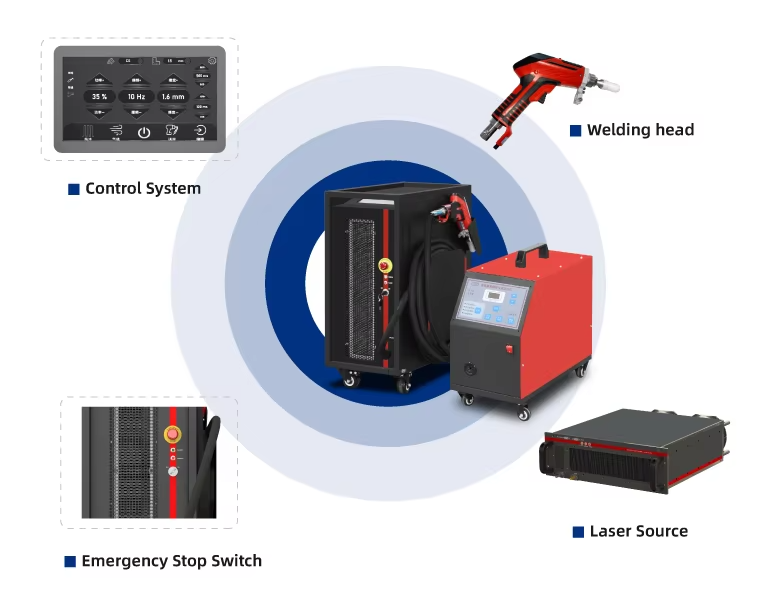

Big pump engine, surging power, globally leading semiconductor laser pump source in the industrial field

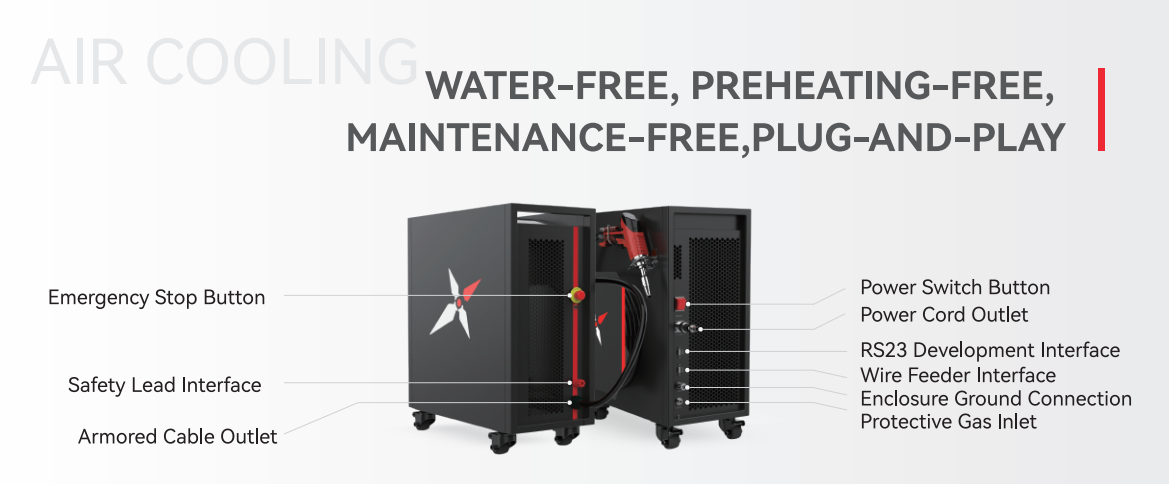

Strong air cooling, real-time welding without preheating

Maintain sufficient power margin at rated power output state

Industry leading optical technology and control solutions achieve high efficiency, low energy consumption, and deep welding seams

Global top high-performance chips ensure stable and reliable laser quality

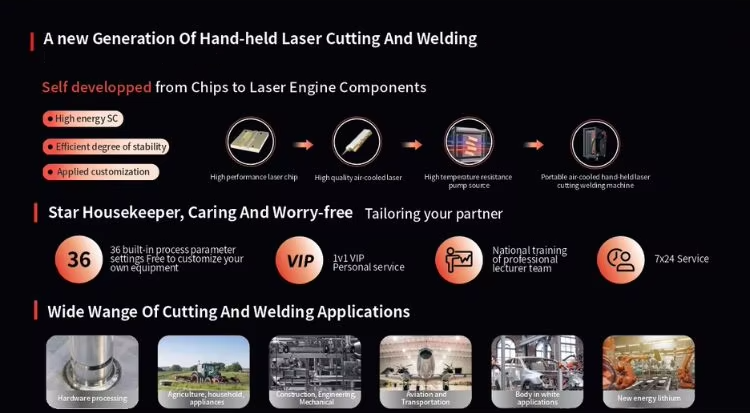

High quality pump source + High performance laser chips → Efficient heat sink to solve heat dissipation problems

Unlike traditional welding methods, portable air cooled laser welding equipment have a smaller volume and are more suitable for outdoor work. The grounding point does not need to be completely cleaned, and even beginners can reliably weld materials of different thicknesses and conductivity. In addition, the heat affected zone is greatly reduced, while also reducing the grinding and polishing required for traditional welding methods, thereby improving productivity, reducing waste, and lowering the cost of each workpiece.



Small laser welding machine, specialized for general workers without welding experience, with fast welding speed, firm welding seams, weight and volume better than water-cooled handheld laser welding machines, improving the mobility of the entire machine.

Model	X3	X4	X4H	X5
Center wavelength	1080±10nm
FWHM spectral bandwidth	＜10nm
Divergence angle	0.06NA
Light spot energy distribution	Gaussian
Work mode	CW & Pulse
Maximum modulation frequency	5kHz	10kHz	10kHz	10kHz
Output power instability	＜3%（24 hours）	＜3%（24 hours）	＜3%（24 hours）	＜5%（24 hours）
Power adjustment range	10%-100%
Indicate laser parameters	650nm≥1mW
Output fiber core diameter	14μm	14μm	20μm	20μm
Armor cable fiber length	5m	5m	5m	5m/10m (Special custom)
Output connector	XphotonicsQBH
Fiber bending radius	200mm	200mm	200mm	300mm
Input voltage	Single phase 220V±10%; 50/60HZ
Power consumption	≤10A 2200W	≤14A 3000W	≤19A 4500W	≤19A 4500W

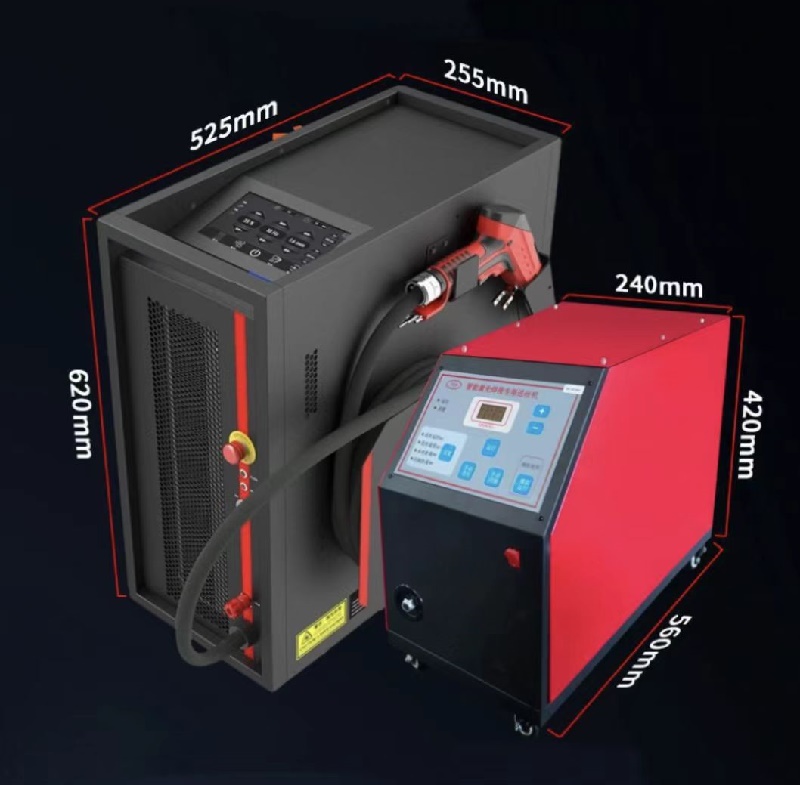

Mechanical Dimensions	420*255*550mm	420*255*550mm	525*255*620mm	525*255*620mm
N.W.	25KG	25KG	41KG	42KG

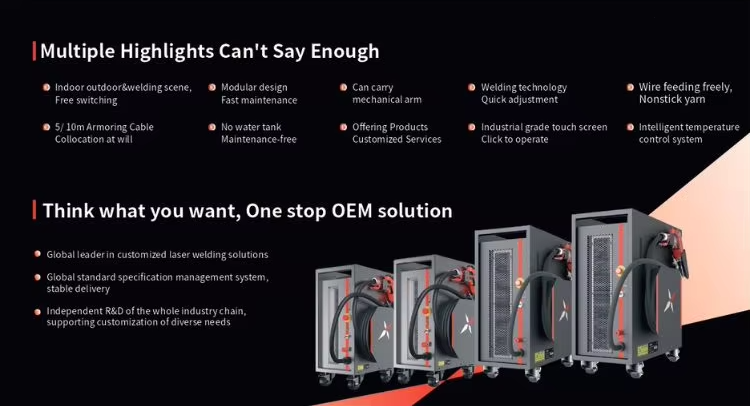

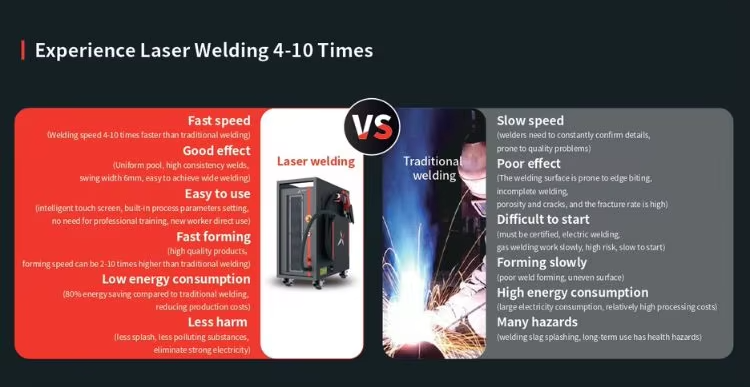

Advantages of portable air cooled laser welding machines:



1.Fast speed
(Welding speed 4-10 times faster than traditional welding)
2.Good effect
(Uniform pool, high consistency welds,swing width 6mm, easy to achieve wide welding)
3.Easy to use

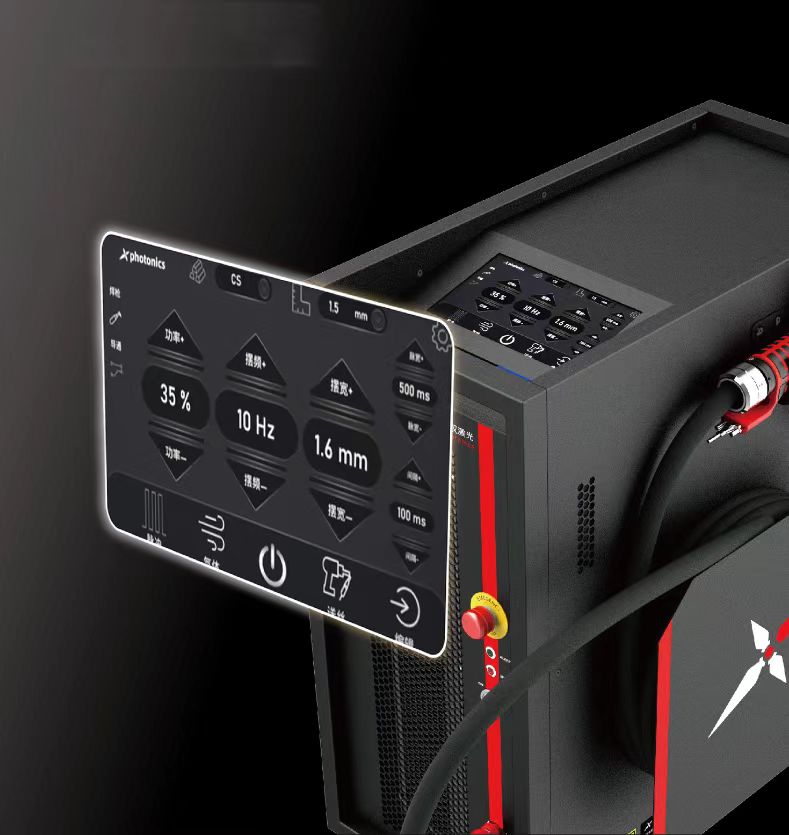

(intelligent touch screen, built-in process parameters setting,no need for professional training, new worker direct use)
4.Fast forming
(high quality products,forming speed can be 2-10 times higher than traditional welding)
6.Low energy consumption
(80% energy saving compared to traditional welding,reducing production costs)
7.Less harm
(less splash, less polluting substances,eliminate strong electricity)

Weldable materials: stainless steel, carbon steel, brass, aluminum alloy, galvanized sheet, aluminum zinc plate, alloy steel, silicon steel plate, pickling plate, titanium alloy, manganese steel, etc.
