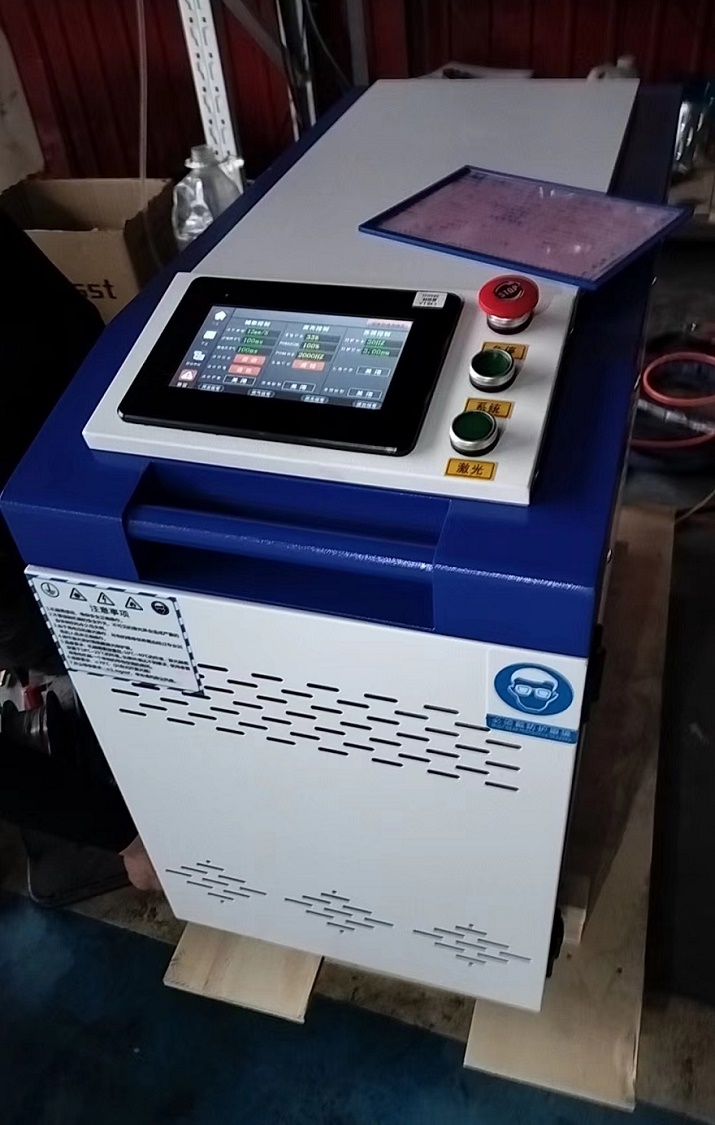

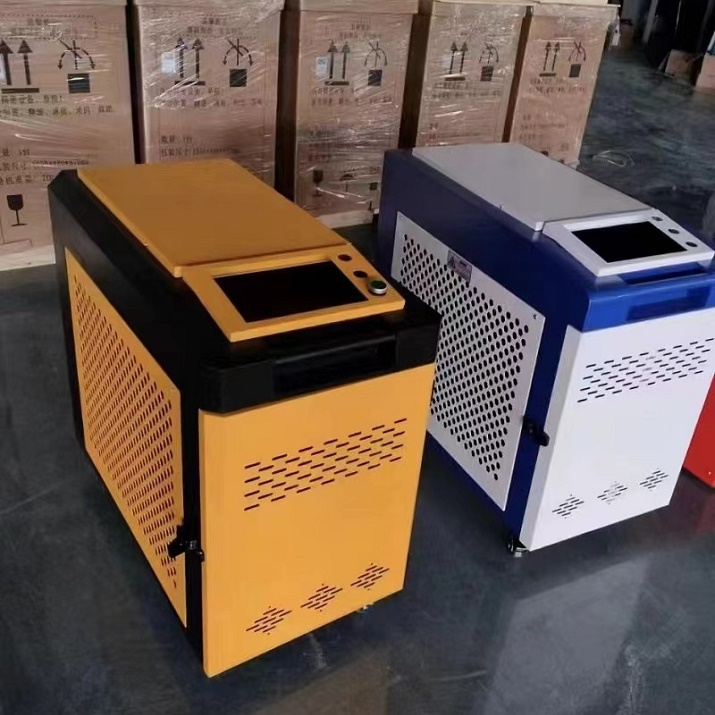

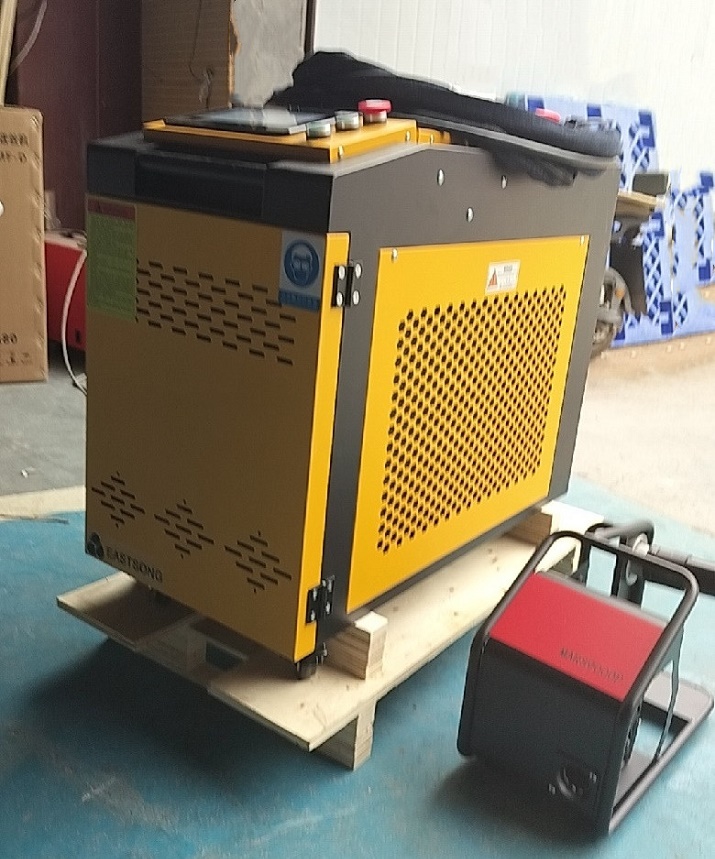

3000W Handheld Fiber Lazer Welding Cutting Cleaning 3 in 1 Laser Welding Machines

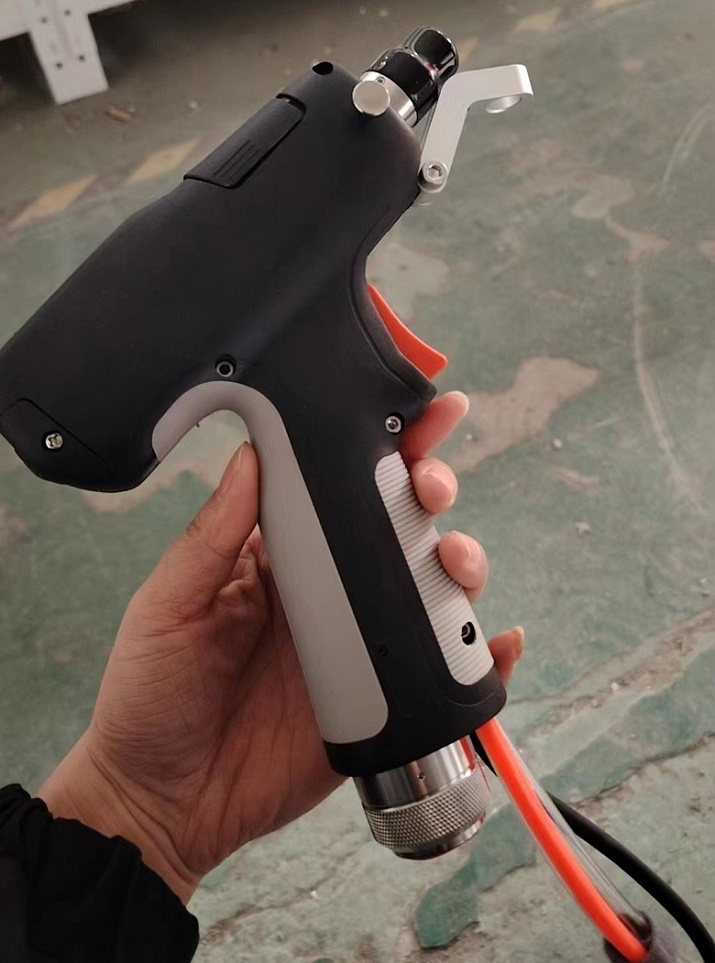

Hand-held fiber laser welding machine adopts the latest generation of fiber laser and is equipped with intelligent laser welding head. It has many advantages such as simple operation, beautiful welding line, fast welding speed and no consumables.
Fiber laser width: 10m, 15m, 20m (optional)
Cooling system: water cooling
Air system: air compressor
Application: thin stainless steel plates, carbon steel plates, galvanized sheets, ect
4.No consumables
Model
3000 Watt
Laser Power
3000watt
Laser Source
Fiber Laser Raycus / Max / JPT
Wavelength(nm)
1064 - 1080
Laser Mode
Continues / Pulsed
Beam Quality
M2<1.5
Length of Fiber
5-10m (customized)
Interface
QBH
Welding Width
0.2-5mm (adjustable)
Laser Preview
Integrated Red Light Preview
Cooling
Integrated Water Chiller
Language
Chinese / English / Russian / Korean / Vietnamese
Power Supply
AC 380V, 50Hz/60Hz
Security System
TSS - Trip Security System Available
Parameter Setting
Touch Panel
Welding Materials
Carbon Steel, Stainless Steel, Aluminum, Brass, Alloy etc.
Welding Speed
0-120mm/s (adjustable)
