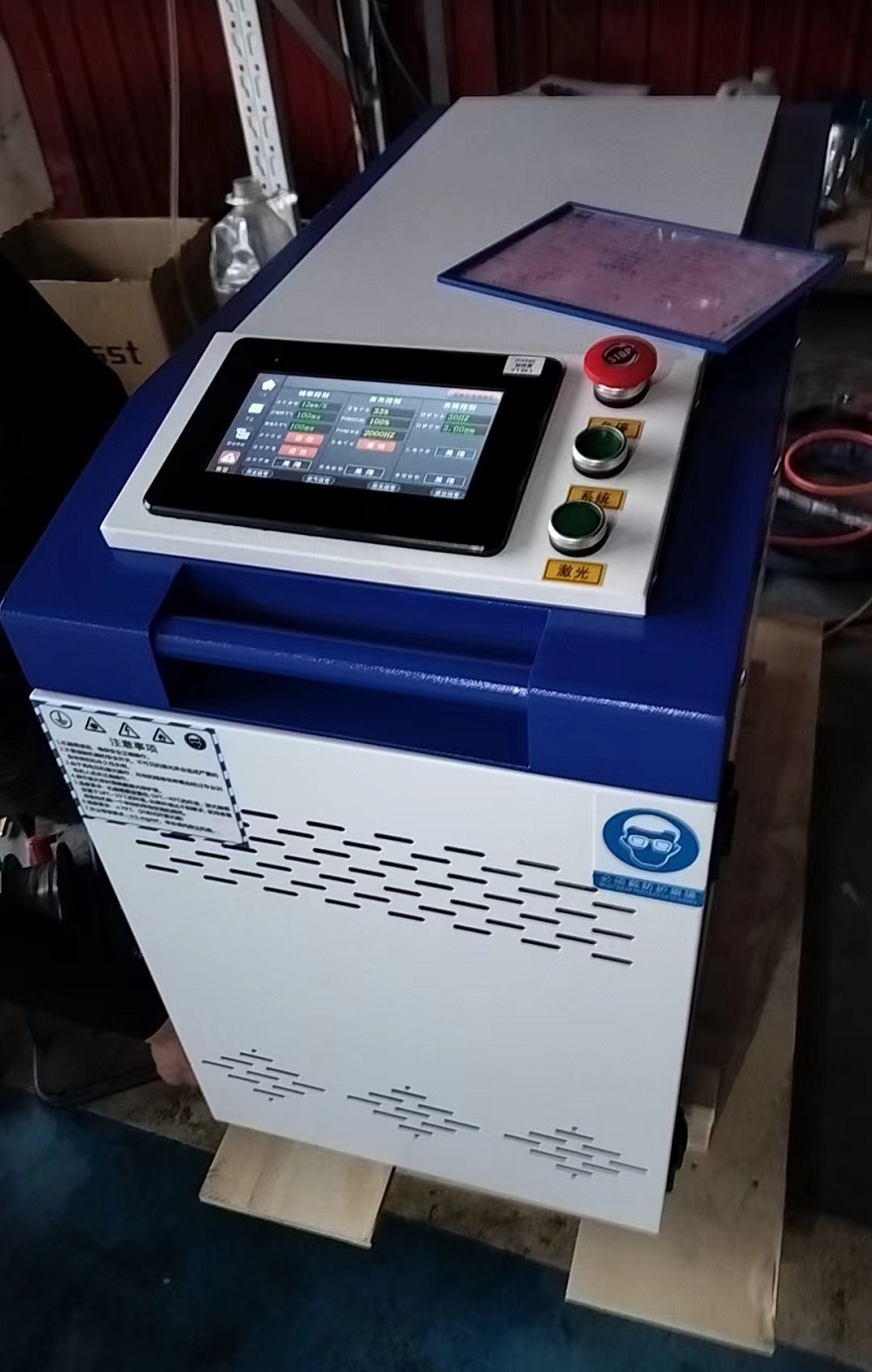

3-in-1 Handheld Laser Welding Machine 1000W Laser Welder
Hand held three in one Laser Welding Machine come with 3 functions - welding, cutting and cleaning.
Portable handheld laser welding machine for metal is a non-contact process, mainly used in stainless steel, carbon steel, aluminum, copper, galvanized steel and other metal welding
Model
ES-1000W
Laser power
1000W
Spot adjustment range
0~5mm
Use wavelength
1060nm-1080nm
Laser input interface
QBH
Collimator
D20/F50mm
Focusing lens
D20/F120mm
Protective glass
D20×2mm
Welding shielding gas
8-25L/min
Weight
130Kg
-
Handheld laser welding machine for metal is ideal for stainless sheet, iron sheet, galvanized sheet as well as aluminum sheet welding.
-
The simplest control method, the swing speed and swing range can be adjusted manually,No complicated graphics software is needed to control the galvanometer, and no computer is needed, just 24V DC power supply can start.
-
The speed of up to 12000 revolutions makes the welding pool fully stirred evenly, greatly Improved welding quality, 0~5mm swing amplitude adjustable light spot,so this portable handheld laser welding machine for metal is adaptable various complicated processes.
-
The overall weight is small, suitable for various mechanical structures, and the high-speed movement has low inertia. Lightweight and fast speed, lower mechanical cost.
